Applications:
- Petrochemical Processing
- Fertilizer Processing
- Basic Chemical Processing
- Air Treatment
- Fine Chemical Processing
- Detergents Processing
- Fibre Processing
- Active Pharmaceutical Ingredients

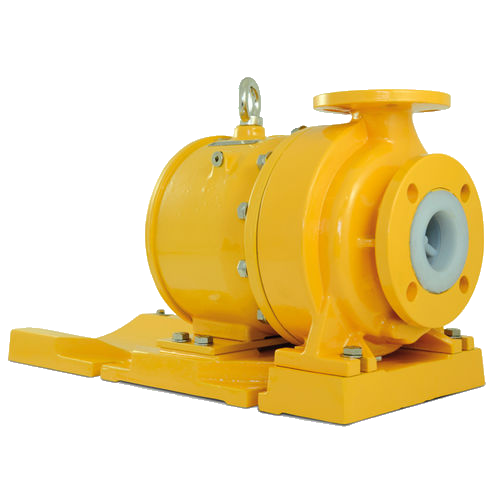

Mag drive concept
Inner and Outer magnets are equipped with NdFeB (neodymium iron boron) and SmCo (samarium cobalt) permanent magnets. Patented cage magnet attachment guarantee stability during the operation of the pump.
Seal-less design
Total containment, essential for hazardous, aggressive or valuable product.
Modular configuration
The pump design grants a modular configuration of either end-suction or close-coupled design.
Transfer Moulding.
All PFA components are made through Transfer Moulding process. The Transfer Moulding process is also employed for PVDF \ PP lined casing
Vacuum resistant housing lining.
Moreover, all PFA components are made through transfer moulding process.
Thick walls.
All wetted parts have a high chemical resistance employing a performing material as Virgin unfilled PFA, granting also a wall thickness of at least 4mm to 5mm Virgin PFA. Alternative available materials for the Wetted parts: PP and PVDF.
Technical data
| Material | Polypropylene (PP) | Polyvinylidene fluoride (PVDF) | Perfluoroalkoxy (PFA) |
| Pump type | Pump in long coupled execution with motor frame B3 | ||
| Handled liquids | Corrosive, inflammable and toxic liquids, high purity chemicals liquids | ||
| Hydraulic performances | Q max=65 m3/h H=65 m | ||
| Drives | from 0,75 kW to 30 kW | ||
| Temperature range | -15° C to +70° C | -15 °C to +100 °C | -15 °C to +140 °C |
| System pressure rating | max 20 bar (@ 20°C) and 12 bar (@ 70°C) | max 20 bar (@ 20°C) and 8 bar (@100°C) | max 20 bar (@ 20°C) and 8 bar (@120°C) |
| Viscosity | 400 cSt max | ||
| Solids | 2% max concentration in weight, Hardness max 800 Vk, Size max 150 μm | ||
